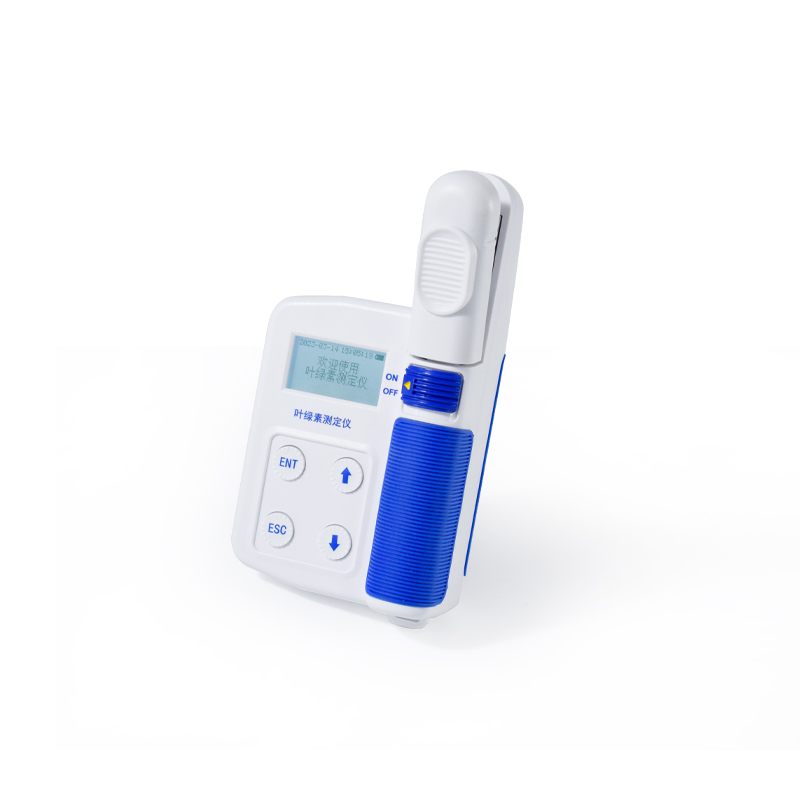

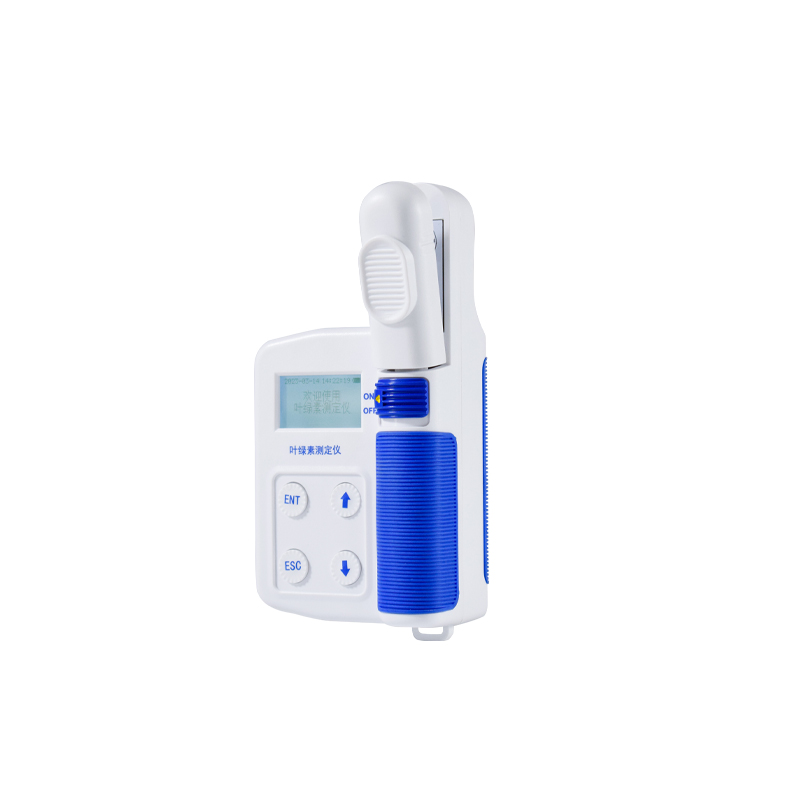

Chlorophyll Analyzer

detector

Chlorophyll meter according to the chlorophyll spectral absorption law, using two different light-emitting tube irradiation leaves, through the measurement of the intensity of light through the leaf blade to calculate the relative content of chlorophyll within the leaf blade or the degree of green, so as to provide a reliable scientific basis for reasonable, appropriate and timely application of fertilisers, is widely used in agriculture, forestry, plants and other scientific research and production guidance.

II. Functional characteristics

1. Rapid and non-destructive plant vivo testing, measurement can be inserted into the leaf, no need to pick the leaf, does not affect the normal growth of the crop, you can monitor the leaf throughout the crop growth process, so as to get a more scientific analysis results

2. High measurement accuracy (accuracy: ± 1.0 SPAD, repeatability: ± 0.3 SPAD)

3.16GB large storage space, data can be stored, viewed, exported in groups

4.Multi-functional USB interface, data export and charging function can be achieved, the instrument can be directly online with the computer, data export without the host computer software, you can also choose to use the memory card to export data directly, the operation is simple and convenient

5. Data browsing: the measured data can be browsed on the instrument at any time and abnormal data can be deleted at will.

6. High-contrast LCD display, which can clearly display the data under strong light.

7. Low-power mode design, built-in high-capacity lithium-ion rechargeable battery, with anti-overcharge function, energy saving and environmental protection and convenient for outdoor operation.

8. Built-in Chinese and English bilingual display, one-key switching, seamless docking

 III. Technical specifications

1. Measuring range: 0.0-99.99SPAD

2. Measuring area: 2mm * 3mm

3. Measurement accuracy: ± 1.0 SPAD units within (room temperature, SPAD value between 0-50)

4. Repeatability: ± 0.3 SPAD units or less (SPAD value between 0-50)

5. Measurement time interval: less than 0.8 seconds

6. Data storage: 16GB can be grouped according to user requirements for storage

7. Power supply: 4.2V rechargeable lithium battery

8. Battery capacity: 3000mah

9. Weight: 230g

10. Working and storage environment: -10 ℃ ~ 50 ℃ ≤ 85% relative humidity
