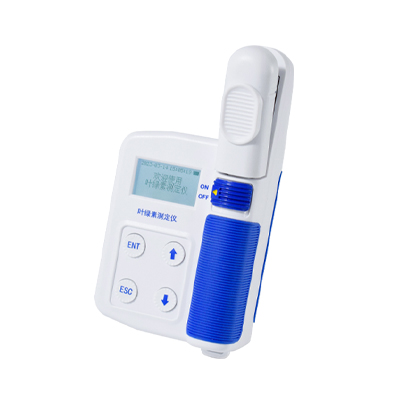

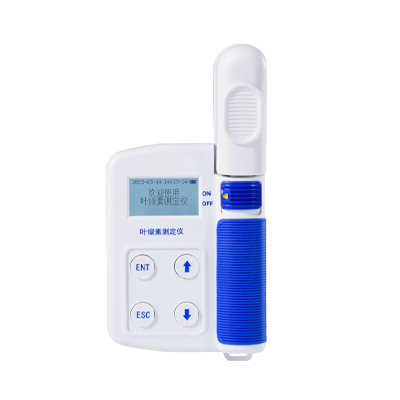

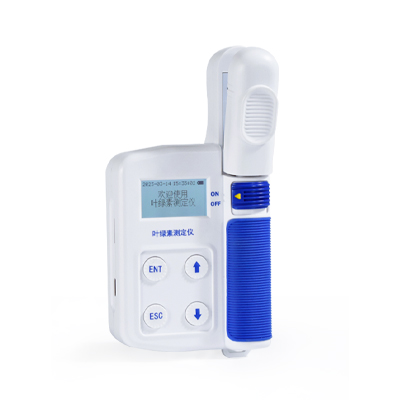

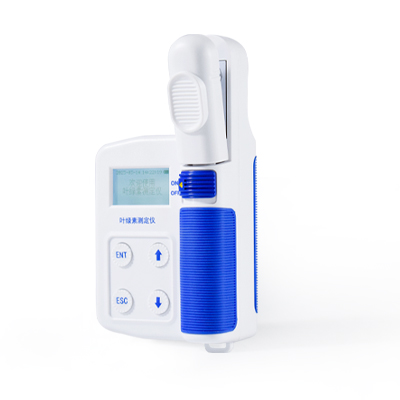

I. Applications The chlorophyll meter, based on the chlorophyll spectrum absorption characteristics, uses two different light-emitting tubes to illuminate leaves. By measuring the intensity of light transmitted through the leaves, it calculates the relative chlorophyll content or greenness of the leaves, thus providing a reliable scientific basis for rational, appropriate, and timely fertilization. It is widely used in scientific research and production guidance in agriculture, forestry, and botany.
II. Features
1. Rapid and non-destructive plant detection: Simply insert a leaf during measurement; no leaf removal is required, preserving normal crop growth. Monitoring leaves throughout the crop's growth process yields more scientific analysis results.
2. High measurement accuracy (Accuracy: ±1.0 SPAD, Repeatability: ±0.3 SPAD)
3. 16GB large storage space: Data can be grouped, viewed, and exported.
4. Multi-functional USB interface: Enables data export and charging. The instrument can be directly connected to a computer; data export requires no host computer software. Alternatively, data can be exported directly from a memory card. Operation is simple and convenient.
5. Data browsing: Measurement data can be viewed on the instrument at any time, and abnormal data can be deleted at will.
6. High-contrast LCD display: Data is clearly displayed even in strong light.
7. Low-power mode design: Built-in high-capacity lithium-ion rechargeable battery with overcharge protection, energy-saving, environmentally friendly, and convenient for outdoor operation.
8. Built-in bilingual display (Chinese and English): One-button switching for seamless integration.
III. Technical Specifications
1. 1. Measurement Range: 0.0-99.99 SPAD
2. Measurement Area: 2mm*3mm
3. Measurement Accuracy: ±1.0 SPAD units (SPAD value between 0-50 at room temperature)
4. Repeatability: ±0.3 SPAD units (SPAD value between 0-50)
5. Measurement Time Interval: Less than 0.8 seconds
6. Data Storage: 16GB, grouped storage available upon request
7. Power Supply: 4.2V rechargeable lithium battery
8. Battery Capacity: 3000mAh
9. Weight: 230g
10. Operating and Storage Environment: -10℃~50℃, ≤85% relative humidity
